AEM 6550 - Assets Dynamic Media Standalone Script to Export Assets from Classic (Scene7) Account

Goal


You have a AEM Dynamic Media instance and the requirement is to export assets by folder in associated Scene7 account. The following standalone java program explores using the Scene7 wsdl IpsAPI to connect, browse, list and export assets by folder....

Please note:
  • The following script is to just give you an idea on how to use the API; based on number and size of assets in the S7 account, you might see out of memory errors, execution taking too long etc... so improve the code to handle memory utilization, add logic for parallel connections to scene7 etc (when you do and make it open source please leave a comment)
  • You can export upto 500 assets / 1GB per job. So additional logic required if a folder (not including subfolders) have more than 500 assets or 1GB combined...  https://docs.adobe.com/content/help/en/dynamic-media-classic/using/managing-assets/exporting-assets-scene7-publishing-system.html
  • The long zip names (scene7 folder path used in name) for downloads might cause issues in some OS. Adjust the logic if you have deep nested hierarchy...
For searching check this post

Github

Solution


1) Login to AEM CrxDe - http://localhost:4502/crx/de and get the Scene7 Company handle used in Dynamic Media configuration eg. /conf/global/settings/cloudconfigs/dmscene7/jcr:content



2) Open following AEM config page and from the list of scene7 endpoints get the one for your region (available in AEM DM configuration, step 1 above eg. northamerica-enterprise)

                     http://localhost:4502/libs/settings/dam/scene7/endpoints.html



3) Get the Scene7 IpsAPI wsdl SDK from AEM installation launchpad, by looking for the bundle number folder, copy to your program classpath folder and rename bundle.jar to versioned jar name eg. cq-scene7-wsdl-1.3.2.jar



4) In your standalone program eg. ExportScene7Assets classpath add the following jars (available in Adobe Repo - https://repo.adobe.com/nexus/content/groups/public/)

                            C:\dev\projects\templibs\scene7\cq-scene7-wsdl-1.3.2.jar
                            C:\Users\<user>\.m2\repository\commons-codec\commons-codec\1.11\commons-codec-1.11.jar
                            C:\Users\<user>\.m2\repository\commons-httpclient\commons-httpclient\3.1\commons-httpclient-3.1.jar
                            C:\Users\<user>\.m2\repository\commons-logging\commons-logging-api\1.1\commons-logging-api-1.1.jar
                            C:\Users\<user>\.m2\repository\commons-io\commons-io\2.5\commons-io-2.5.jar
                            C:\Users\nalabotu\.m2\repository\org\apache\httpcomponents\httpclient-osgi\4.5.2\httpclient-osgi-4.5.2.jar
                            C:\Users\nalabotu\.m2\repository\org\apache\httpcomponents\httpcore\4.4.11\httpcore-4.4.11.jar

5) Sample Request / Response for exporting assets in a folder

               List assets in a folder

                              Request

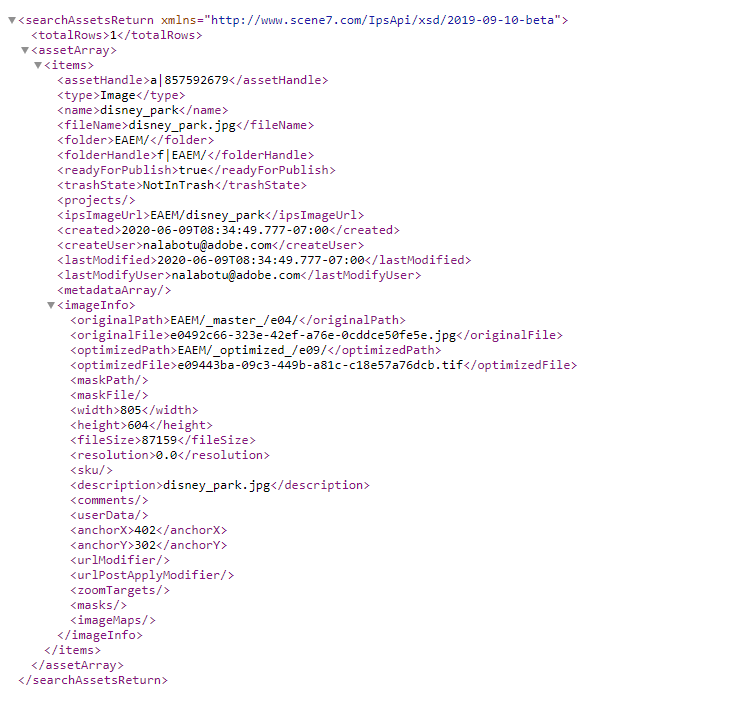

                              Response



               Submit Export Job

                              Request

                              Response

               Export Job Status

                              Request

                              Response


               Zips Saved on Disk



               Export Log




6)) Add the following logic in standalone program ExportScene7Assets to connect to Scene7, get and parse response, download folder zips....

import com.scene7.ipsapi.*;
import org.apache.commons.httpclient.HttpClient;
import org.apache.commons.httpclient.methods.ByteArrayRequestEntity;
import org.apache.commons.httpclient.methods.PostMethod;
import org.apache.commons.io.FileUtils;
import org.apache.http.client.fluent.Request;
import org.w3c.dom.Document;
import org.w3c.dom.Element;
import org.w3c.dom.Node;
import org.w3c.dom.NodeList;

import javax.xml.bind.JAXBContext;
import javax.xml.bind.JAXBException;
import javax.xml.bind.Marshaller;
import javax.xml.parsers.DocumentBuilder;
import javax.xml.parsers.DocumentBuilderFactory;
import javax.xml.xpath.XPath;
import javax.xml.xpath.XPathConstants;
import javax.xml.xpath.XPathFactory;
import java.io.ByteArrayInputStream;
import java.io.File;
import java.io.StringWriter;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.ArrayList;
import java.util.Date;
import java.util.List;

public class ExportScene7Assets {
    private static String S7_NA_IPS_URL = "https://s7sps1apissl.scene7.com/scene7/api/IpsApiService"; //available in AEM http://localhost:4502/libs/settings/dam/scene7/endpoints.html
    private static String S7_COMPANY_HANDLE = "c|230095"; //c|230095, c|9686 available via api or in AEM /conf/global/settings/cloudconfigs/dmscene7/jcr:content
    private static String S7_USER = "";
    private static String S7_PASS = "";
    private static String STAND_ALONE_APP_NAME = "Experiencing AEM";
    private static int assetCount = 0;
    private static String DOWNLOAD_ZIPS_LOCATION = "C:/dev/projects/eaem-extensions/eaem-65-extensions/eaem-scene7-search-standalone/out";

    public static void main(String[] args) throws Exception {
        new File(DOWNLOAD_ZIPS_LOCATION).mkdirs();

        browseFolder(null);

        System.out.println("TOTAL ASSETS : " + assetCount);
    }

    private static void browseFolder(S7Folder s7Folder) throws Exception {
        AuthHeader authHeader = getS7AuthHeader();

        Marshaller marshaller = getMarshaller(AuthHeader.class);
        StringWriter sw = new StringWriter();
        marshaller.marshal(authHeader, sw);

        String authHeaderStr = sw.toString();

        GetFolderTreeParam getFolderTreeParam = getGetFolderTreeParam(s7Folder);

        marshaller = getMarshaller(getFolderTreeParam.getClass());
        sw = new StringWriter();
        marshaller.marshal(getFolderTreeParam, sw);

        String apiMethod = sw.toString();

        byte[] responseBody = getResponse(authHeaderStr, apiMethod);

        List<S7Folder> folders = parseResponse(responseBody, s7Folder);

        folders.forEach(folder -> {
            if(folder.isHasSubFolders()){
                try{
                    browseFolder(folder);
                }catch (Exception e){
                    e.printStackTrace();
                }
            }
        });

        printFolders(s7Folder, folders);
    }

    private static void printFolders(S7Folder parentFolder, List<S7Folder> folders){
        if( ( parentFolder == null ) && folders.isEmpty()){
            System.out.println("No folders in account - " + S7_COMPANY_HANDLE);
            return;
        }

        if(folders.isEmpty()){
            System.out.println("No folders under - " + parentFolder.getFolderPath());
            return;
        }

        if(parentFolder == null){
            System.out.println(S7_COMPANY_HANDLE);
        }else{
            System.out.println(parentFolder.getFolderPath());
        }

        folders.forEach(folder -> {
            List<S7Asset> assets = folder.getAssets();

            assetCount = assetCount + assets.size();

            System.out.println("\t" + folder.getFolderPath() + " - " + assets.size());

            assets.forEach(asset -> {
                System.out.println("\t\t" + asset.getAssetPath() + " (" + FileUtils.byteCountToDisplaySize(asset.getAssetSize()) + ")");
            });

            if(!folder.getAssets().isEmpty()){
                try{
                    exportAssets(folder);
                }catch (Exception e){
                    System.out.println("ERROR EXPORTING ASSETS OF - " + folder.getFolderPath());
                }
            }
        });
    }

    private static void exportAssets(S7Folder folder) throws Exception{
        AuthHeader authHeader = getS7AuthHeader();

        Marshaller marshaller = getMarshaller(AuthHeader.class);
        StringWriter sw = new StringWriter();
        marshaller.marshal(authHeader, sw);

        String authHeaderStr = sw.toString();

        SubmitJobParam submitJobParam = getSubmitJobParam(folder);

        marshaller = getMarshaller(submitJobParam.getClass());
        sw = new StringWriter();
        marshaller.marshal(submitJobParam, sw);

        String apiMethod = sw.toString();

        byte[] responseBody = getResponse(authHeaderStr, apiMethod);

        String exportJobHandle = parseSubmitJobResponse(responseBody, folder);

        if(exportJobHandle == null){
            return;
        }

        String exportZipUrl = getExportZipUrl(authHeaderStr, submitJobParam.getJobName());

        System.out.println("\t\tEXPORT ZIP URL - " + exportZipUrl);

        byte[] response = Request.Get(exportZipUrl).execute().returnContent().asBytes();

        if (response == null || response.length == 0) {
            throw new RuntimeException("Empty response for download request");
        }

        File zipFile = new File(DOWNLOAD_ZIPS_LOCATION + "/" + submitJobParam.getJobName() + ".zip");

        Files.write(Paths.get(zipFile.getAbsolutePath()), response);

        System.out.println("\t\tSAVED AS - " + zipFile.getAbsolutePath());
    }

    private static String getExportZipUrl(String authHeaderStr, String jobName) throws Exception{
        String exportZipUrl = null;

        do{
            Thread.sleep(500);

            exportZipUrl = pingJobStatus(authHeaderStr, jobName);
        }while( exportZipUrl == null);

        return exportZipUrl;
    }

    private static String pingJobStatus(String authHeaderStr, String jobName) throws Exception{
        GetJobLogDetailsParam getJobLogDetails = getJobLogDetails(jobName);

        Marshaller marshaller = getMarshaller(getJobLogDetails.getClass());
        StringWriter sw = new StringWriter();
        marshaller.marshal(getJobLogDetails, sw);

        String apiMethod = sw.toString();

        byte[] responseBody = getResponse(authHeaderStr, apiMethod);

        return parseJobLogResponse(responseBody);
    }

    private static String parseJobLogResponse(byte[] responseBody) throws Exception{
        String expression = "//assetName[starts-with(text(),'http')]";

        NodeList itemList = getDocumentNodeList(responseBody, expression);

        String exportZipUrl = null;

        for (int i = 0; i < itemList.getLength(); i++) {
            Node item = itemList.item(i);

            if(item.getNodeType() != Node.ELEMENT_NODE) {
                continue;
            }

            exportZipUrl = ((Element)item).getTextContent();

            break;
        }

        return exportZipUrl;
    }


    private static String parseSubmitJobResponse(byte[] responseBody, S7Folder parentFolder) throws Exception{
        String expression = "/submitJobReturn/jobHandle";

        NodeList itemList = getDocumentNodeList(responseBody, expression);

        String exportJobHandle = null;

        for (int i = 0; i < itemList.getLength(); i++) {
            Node item = itemList.item(i);

            if(item.getNodeType() != Node.ELEMENT_NODE) {
                continue;
            }

            exportJobHandle = ((Element)item).getTextContent();

            System.out.println("\t\tEXPORT JOB - " + exportJobHandle);

            break;
        }

        return exportJobHandle;
    }

    private static List<S7Folder> parseResponse(byte[] responseBody, S7Folder parentFolder) throws Exception{
        List<S7Folder> folders = new ArrayList<S7Folder>();

        String expression = "/getFolderTreeReturn/folders";

        if(parentFolder != null){
            expression = "/getFolderTreeReturn/folders/subfolderArray";
        }

        NodeList itemList = getDocumentNodeList(responseBody, expression);

        for (int i = 0; i < itemList.getLength(); i++) {
            Node item = itemList.item(i);

            if(parentFolder != null){
                NodeList childList = item.getChildNodes();

                for (int j = 0; j < childList.getLength(); j++) {
                    folders.add(fillFolderDetail(childList.item(j)));
                }
            }else{
                folders.add(fillFolderDetail(item));
            }
        }

        return folders;
    }

    private static S7Folder fillFolderDetail(Node item) throws Exception{
        S7Folder s7Folder = new S7Folder();

        if(item.getNodeType() == Node.ELEMENT_NODE) {
            Element eElement = (Element) item;

            s7Folder.setFolderHandle(getTextContent(eElement, "folderHandle"));
            s7Folder.setFolderPath(getTextContent(eElement, "path"));
            s7Folder.setHasSubFolders(new Boolean(getTextContent(eElement, "hasSubfolders")));

            fillAssetDetails(s7Folder);
        }

        return s7Folder;
    }

    private static void fillAssetDetails(S7Folder s7Folder) throws Exception{
        AuthHeader authHeader = getS7AuthHeader();

        Marshaller marshaller = getMarshaller(AuthHeader.class);
        StringWriter sw = new StringWriter();
        marshaller.marshal(authHeader, sw);

        String authHeaderStr = sw.toString();

        SearchAssetsParam searchAssetsParam = getSearchAssetsParam(s7Folder);

        marshaller = getMarshaller(searchAssetsParam .getClass());
        sw = new StringWriter();
        marshaller.marshal(searchAssetsParam , sw);

        String apiMethod = sw.toString();

        byte[] responseBody = getResponse(authHeaderStr, apiMethod);

        parseSearchResponse(responseBody, s7Folder);
    }

    private static void parseSearchResponse(byte[] responseBody, S7Folder parentFolder) throws Exception{
        String expression = "/searchAssetsReturn/assetArray/items";

        NodeList itemList = getDocumentNodeList(responseBody, expression);

        List<S7Asset> assets = new ArrayList<S7Asset>();

        for (int i = 0; i < itemList.getLength(); i++) {
            Node item = itemList.item(i);

            if(item.getNodeType() != Node.ELEMENT_NODE) {
                continue;
            }

            S7Asset s7asset = new S7Asset();

            Element eElement = (Element) item;

            s7asset.setAssetHandle(getTextContent(eElement, "assetHandle"));
            s7asset.setAssetPath(getTextContent(eElement, "folder") + getTextContent(eElement, "fileName"));

            NodeList imageInfoList = eElement.getElementsByTagName("imageInfo");

            for (int j = 0; j < imageInfoList.getLength(); j++) {
                Node imageInfo = imageInfoList.item(j);

                if(imageInfo.getNodeType() != Node.ELEMENT_NODE) {
                    continue;
                }

                s7asset.setAssetSize(new Long(getTextContent((Element)imageInfo, "fileSize")));
            }

            assets.add(s7asset);
        }

        parentFolder.setAssets(assets);
    }

    private static String getTextContent(Element eElement, String tagName){
        return eElement.getElementsByTagName(tagName).item(0).getTextContent();
    }

    private static byte[] getResponse(String authHeaderStr, String apiMethod) throws Exception{
        StringBuilder requestBody = new StringBuilder("<Request xmlns=\"http://www.scene7.com/IpsApi/xsd/2017-10-29-beta\">");
        requestBody.append(authHeaderStr).append(apiMethod).append("</Request>");

        byte[] responseBody = null;
        PostMethod postMethod = null;

        try {
            HttpClient httpclient = new HttpClient();

            postMethod = new PostMethod(S7_NA_IPS_URL);

            postMethod.setRequestHeader("Content-Type", "text/xml");

            System.out.println("REQUEST - " + requestBody);

            postMethod.setRequestEntity(new ByteArrayRequestEntity(requestBody.toString().getBytes()));

            int responseCode = httpclient.executeMethod(postMethod);

            if(responseCode != 200){
                System.out.println("Response code - " + responseCode + ", returning here...");
            }

            responseBody = postMethod.getResponseBody();

            System.out.println("RESPONSE - " + new String(responseBody));
        }finally{
            if(postMethod != null){
                postMethod.releaseConnection();
            }
        }

        return responseBody;
    }

    private static AuthHeader getS7AuthHeader(){
        AuthHeader authHeader = new AuthHeader();

        authHeader.setUser(S7_USER);
        authHeader.setPassword(S7_PASS);
        authHeader.setAppName(STAND_ALONE_APP_NAME);
        authHeader.setAppVersion("1.0");
        authHeader.setFaultHttpStatusCode(new Integer(200));

        return authHeader;
    }

    private static GetFolderTreeParam getGetFolderTreeParam(S7Folder s7Folder){
        GetFolderTreeParam getFolderTreeParam = new GetFolderTreeParam();

        getFolderTreeParam.setCompanyHandle(S7_COMPANY_HANDLE);

        getFolderTreeParam.setDepth(1);

        if(s7Folder != null){
            getFolderTreeParam.setFolderPath(s7Folder.getFolderPath());
        }

        return getFolderTreeParam;
    }

    private static SearchAssetsParam getSearchAssetsParam(S7Folder s7Folder){
        SearchAssetsParam searchAssetsParam = new SearchAssetsParam();
        StringArray assetTypes = new StringArray();
        assetTypes.getItems().add("Image");
        assetTypes.getItems().add("Video");

        searchAssetsParam.setCompanyHandle(S7_COMPANY_HANDLE);
        searchAssetsParam.setFolder(s7Folder.getFolderPath());
        searchAssetsParam.setIncludeSubfolders(false);
        searchAssetsParam.setAssetTypeArray(assetTypes);

        return searchAssetsParam;
    }

    private static SubmitJobParam getSubmitJobParam(S7Folder s7Folder){
        SubmitJobParam submitJobParam = new SubmitJobParam();

        ExportJob exportJob = new ExportJob();
        exportJob.setFmt("orig");
        exportJob.setEmailSetting("All");

        HandleArray assetHandles = new HandleArray();

        s7Folder.getAssets().forEach( asset ->{
            assetHandles.getItems().add(asset.getAssetHandle());
        });

        exportJob.setAssetHandleArray(assetHandles);

        submitJobParam.setCompanyHandle(S7_COMPANY_HANDLE);
        submitJobParam.setJobName(getExportJobName(s7Folder.getFolderPath()));
        submitJobParam.setExportJob(exportJob);

        return submitJobParam;
    }

    private static GetJobLogDetailsParam getJobLogDetails(String origJobName){
        GetJobLogDetailsParam getJobLogDetailsParam = new GetJobLogDetailsParam();

        getJobLogDetailsParam.setCompanyHandle(S7_COMPANY_HANDLE);
        getJobLogDetailsParam.setOriginalName(origJobName);

        return getJobLogDetailsParam;
    }

    private static GetActiveJobsParam getActiveJobsParam(String jobHandle){
        GetActiveJobsParam getActiveJobsParam = new GetActiveJobsParam();

        getActiveJobsParam.setCompanyHandle(S7_COMPANY_HANDLE);
        getActiveJobsParam.setJobHandle(jobHandle);

        return getActiveJobsParam;
    }

    private static NodeList getDocumentNodeList(byte[] responseBody, String expression) throws Exception{
        DocumentBuilderFactory factory = DocumentBuilderFactory.newInstance();

        DocumentBuilder builder = factory.newDocumentBuilder();

        ByteArrayInputStream input =  new ByteArrayInputStream(responseBody);

        Document doc = builder.parse(input);

        XPath xPath =  XPathFactory.newInstance().newXPath();

        return (NodeList) xPath.compile(expression).evaluate(doc, XPathConstants.NODESET);
    }

    private static String getExportJobName(String folderPath){
        return folderPath.replaceAll("/", "_") + (new Date()).getTime();
    }

    private static Marshaller getMarshaller(Class apiMethodClass) throws JAXBException {
        Marshaller marshaller = JAXBContext.newInstance(new Class[]{apiMethodClass}).createMarshaller();
        marshaller.setProperty("jaxb.formatted.output", Boolean.valueOf(true));
        marshaller.setProperty("jaxb.fragment", Boolean.valueOf(true));
        return marshaller;
    }

    private static class S7Folder{
        private String folderHandle;
        private String folderPath;
        private boolean hasSubFolders;
        private List<S7Asset> assets;

        public String getFolderHandle() {
            return folderHandle;
        }

        public void setFolderHandle(String folderHandle) {
            this.folderHandle = folderHandle;
        }

        public String getFolderPath() {
            return folderPath;
        }

        public void setFolderPath(String folderPath) {
            this.folderPath = folderPath;
        }

        public boolean isHasSubFolders() {
            return hasSubFolders;
        }

        public void setHasSubFolders(boolean hasSubFolders) {
            this.hasSubFolders = hasSubFolders;
        }

        public List<S7Asset> getAssets() {
            if(assets == null){
                return new ArrayList<>();
            }

            return assets;
        }

        public void setAssets(List<S7Asset> assets) {
            this.assets = assets;
        }

        public String toString(){
            return "[" + folderHandle + "," + folderPath + "," + hasSubFolders + "]";
        }
    }

    private static class S7Asset{
        private String assetHandle;
        private String assetPath;
        private long assetSize;

        public String getAssetHandle() {
            return assetHandle;
        }

        public void setAssetHandle(String assetHandle) {
            this.assetHandle = assetHandle;
        }

        public String getAssetPath() {
            return assetPath;
        }

        public void setAssetPath(String assetPath) {
            this.assetPath = assetPath;
        }

        public long getAssetSize() {
            return assetSize;
        }

        public void setAssetSize(long assetSize) {
            this.assetSize = assetSize;
        }
    }
}









3 comments:

  1. Excellent thread, I have to thank you for this. It helps me a lot to enhance my knowledge. I truly like your way of blogging. I bookmarked it to my bookmark website list and will be checking back soon. Please check out my website environment assignment as well and let me know what you think.

    ReplyDelete
  2. Thanks for this accurate guide. Adobe Experience Manager (AEM) is a leading content and media management system owned by Adobe Systems Inc. for high-volume websites. This system is not easy to learn, so I advise everyone who wants to learn how to use it correctly to watch videos in tik-tok, in which the authors share life hacks on AEM, I found a lot of such videos there and noticed that mostly such videos had almost 30 thousand likes! I am sure this is because the authors of such videos resorted to using the services of https://soclikes.com/buy-tiktok-likes to cheat their number.

    ReplyDelete
  3. On your place I would make a video tutorial and post it on youtube. I used to buy youtube likes and views from this site https://viplikes.net/ to promote my video. You can use it as well

    ReplyDelete
