AEM 6540 - Assets Dynamic Media Standalone Script to list Folders in Scene7

Goal

You have a AEM Dynamic Media instance and the requirement is to browse and get list of all folders in associated Scene7 account. The following standalone java program explores using the Scene7 wsdl IpsAPI to connect and browse....

For searching check this post

Github

Solution

1) Login to AEM CrxDe - http://localhost:4502/crx/de and get the Scene7 Company handle used in Dynamic Media configuration eg. /conf/global/settings/cloudconfigs/dmscene7/jcr:content

2) Open following AEM config page and from the list of scene7 endpoints get the one for your region (available in AEM DM configuration, step 1 above eg. northamerica-enterprise)

                     http://localhost:4502/libs/settings/dam/scene7/endpoints.html

3) Get the Scene7 IpsAPI wsdl SDK from AEM installation launchpad, by looking for the bundle number folder, copy to your program classpath folder and rename bundle.jar to versioned jar name eg. cq-scene7-wsdl-1.3.2.jar

4) In your standalone program eg. BrowseScene7Folders classpath add the following jars (available in Adobe Repo - https://repo.adobe.com/nexus/content/groups/public/)

                            C:\dev\projects\templibs\scene7\cq-scene7-wsdl-1.3.2.jar
                            C:\Users\<user>\.m2\repository\commons-codec\commons-codec\1.11\commons-codec-1.11.jar
                            C:\Users\<user>\.m2\repository\commons-httpclient\commons-httpclient\3.1\commons-httpclient-3.1.jar
                            C:\Users\<user>\.m2\repository\commons-logging\commons-logging-api\1.1\commons-logging-api-1.1.jar

5) Add the following logic in standalone program BrowseScene7Folders to connect to Scene7, get and parse response....

import com.scene7.ipsapi.*;
import org.apache.commons.httpclient.HttpClient;
import org.apache.commons.httpclient.methods.ByteArrayRequestEntity;
import org.apache.commons.httpclient.methods.PostMethod;
import org.w3c.dom.Document;
import org.w3c.dom.Element;
import org.w3c.dom.Node;
import org.w3c.dom.NodeList;

import javax.xml.bind.JAXBContext;
import javax.xml.bind.JAXBException;
import javax.xml.bind.Marshaller;
import javax.xml.parsers.DocumentBuilder;
import javax.xml.parsers.DocumentBuilderFactory;
import javax.xml.xpath.XPath;
import javax.xml.xpath.XPathConstants;
import javax.xml.xpath.XPathFactory;
import java.io.ByteArrayInputStream;
import java.io.StringWriter;
import java.util.ArrayList;
import java.util.List;

public class BrowseScene7Folders {
    private static String S7_NA_IPS_URL = "https://s7sps1apissl.scene7.com/scene7/api/IpsApiService"; //available in AEM http://localhost:4502/libs/settings/dam/scene7/endpoints.html
    private static String S7_COMPANY_HANDLE = "c|9686"; //c|230095 available via api or in AEM /conf/global/settings/cloudconfigs/dmscene7/jcr:content
    private static String S7_USER = "";
    private static String S7_PASS = "";
    private static String STAND_ALONE_APP_NAME = "Experiencing AEM";
    private static String FOLDER_HANDLE = ""; //Leave empty to browse root
    private static int folderCount = 0;

    public static void main(String[] args) throws Exception {
        browseFolder(null);
        System.out.println("TOTAL FOLDERS : " + folderCount);
    }

    private static void browseFolder(S7Folder s7Folder) throws Exception {
        AuthHeader authHeader = getS7AuthHeader();

        Marshaller marshaller = getMarshaller(AuthHeader.class);
        StringWriter sw = new StringWriter();
        marshaller.marshal(authHeader, sw);

        String authHeaderStr = sw.toString();

        GetFolderTreeParam getFolderTreeParam = getGetFolderTreeParam(s7Folder);

        marshaller = getMarshaller(getFolderTreeParam.getClass());
        sw = new StringWriter();
        marshaller.marshal(getFolderTreeParam, sw);

        String apiMethod = sw.toString();

        byte[] responseBody = getResponse(authHeaderStr, apiMethod);

        List<S7Folder> folders = parseResponse(responseBody, s7Folder);

        folders.forEach(folder -> {
            if(folder.isHasSubFolders()){
                try{
                    browseFolder(folder);
                }catch (Exception e){
                    e.printStackTrace();
                }
            }
        });

        printFolders(s7Folder, folders);
    }

    private static void printFolders(S7Folder parentFolder, List<S7Folder> folders){
        if( ( parentFolder == null ) && folders.isEmpty()){
            System.out.println("No folders in account - " + S7_COMPANY_HANDLE);
            return;
        }

        if(folders.isEmpty()){
            System.out.println("No folders under - " + parentFolder.getFolderPath());
            return;
        }

        if(parentFolder == null){
            System.out.println(S7_COMPANY_HANDLE);
        }else{
            System.out.println(parentFolder.getFolderPath());
        }

        folders.forEach(folder -> {
            folderCount++;
            System.out.println("\t" + folder.getFolderPath());
        });
    }

    private static List<S7Folder> parseResponse(byte[] responseBody, S7Folder parentFolder) throws Exception{
        List<S7Folder> folders = new ArrayList<S7Folder>();

        DocumentBuilderFactory factory = DocumentBuilderFactory.newInstance();

        DocumentBuilder builder = factory.newDocumentBuilder();

        ByteArrayInputStream input =  new ByteArrayInputStream(responseBody);

        Document doc = builder.parse(input);

        XPath xPath =  XPathFactory.newInstance().newXPath();

        String expression = "/getFolderTreeReturn/folders";

        if(parentFolder != null){
            expression = "/getFolderTreeReturn/folders/subfolderArray";
        }

        NodeList itemList = (NodeList) xPath.compile(expression).evaluate(doc, XPathConstants.NODESET);

        for (int i = 0; i < itemList.getLength(); i++) {
            Node item = itemList.item(i);

            if(parentFolder != null){
                NodeList childList = item.getChildNodes();

                for (int j = 0; j < childList.getLength(); j++) {
                    folders.add(fillFolderDetail(childList.item(j)));
                }
            }else{
                folders.add(fillFolderDetail(item));
            }
        }

        return folders;
    }

    private static S7Folder fillFolderDetail(Node item){
        S7Folder s7Folder = new S7Folder();

        if(item.getNodeType() == Node.ELEMENT_NODE) {
            Element eElement = (Element) item;

            s7Folder.setFolderHandle(eElement.getElementsByTagName("folderHandle").item(0).getTextContent());
            s7Folder.setFolderPath(eElement.getElementsByTagName("path").item(0).getTextContent());
            s7Folder.setHasSubFolders(new Boolean(eElement.getElementsByTagName("hasSubfolders").item(0).getTextContent()));
        }

        return s7Folder;
    }

    private static byte[] getResponse(String authHeaderStr, String apiMethod) throws Exception{
        StringBuilder requestBody = new StringBuilder("<Request xmlns=\"http://www.scene7.com/IpsApi/xsd/2017-10-29-beta\">");
        requestBody.append(authHeaderStr).append(apiMethod).append("</Request>");

        byte[] responseBody = null;
        PostMethod postMethod = null;

        try {
            HttpClient httpclient = new HttpClient();

            postMethod = new PostMethod(S7_NA_IPS_URL);

            postMethod.setRequestHeader("Content-Type", "text/xml");
            postMethod.setRequestEntity(new ByteArrayRequestEntity(requestBody.toString().getBytes()));

            int responseCode = httpclient.executeMethod(postMethod);

            if(responseCode != 200){
                System.out.println("Response code - " + responseCode + ", returning here...");
            }

            responseBody = postMethod.getResponseBody();
        }finally{
            if(postMethod != null){
                postMethod.releaseConnection();
            }
        }

        return responseBody;
    }

    private static AuthHeader getS7AuthHeader(){
        AuthHeader authHeader = new AuthHeader();

        authHeader.setUser(S7_USER);
        authHeader.setPassword(S7_PASS);
        authHeader.setAppName(STAND_ALONE_APP_NAME);
        authHeader.setAppVersion("1.0");
        authHeader.setFaultHttpStatusCode(new Integer(200));

        return authHeader;
    }

    private static GetFolderTreeParam getGetFolderTreeParam(S7Folder s7Folder){
        GetFolderTreeParam getFolderTreeParam = new GetFolderTreeParam();

        getFolderTreeParam.setCompanyHandle(S7_COMPANY_HANDLE);

        getFolderTreeParam.setDepth(1);

        if(s7Folder != null){
            getFolderTreeParam.setFolderPath(s7Folder.getFolderPath());
        }

        return getFolderTreeParam;
    }

    private static Marshaller getMarshaller(Class apiMethodClass) throws JAXBException {
        Marshaller marshaller = JAXBContext.newInstance(new Class[]{apiMethodClass}).createMarshaller();
        marshaller.setProperty("jaxb.formatted.output", Boolean.valueOf(true));
        marshaller.setProperty("jaxb.fragment", Boolean.valueOf(true));
        return marshaller;
    }

    private static class S7Folder{
        private String folderHandle;
        private String folderPath;
        private boolean hasSubFolders;

        public String getFolderHandle() {
            return folderHandle;
        }

        public void setFolderHandle(String folderHandle) {
            this.folderHandle = folderHandle;
        }

        public String getFolderPath() {
            return folderPath;
        }

        public void setFolderPath(String folderPath) {
            this.folderPath = folderPath;
        }

        public boolean isHasSubFolders() {
            return hasSubFolders;
        }

        public void setHasSubFolders(boolean hasSubFolders) {
            this.hasSubFolders = hasSubFolders;
        }

        public String toString(){
            return "[" + folderHandle + "," + folderPath + "," + hasSubFolders + "]";
        }
    }
}

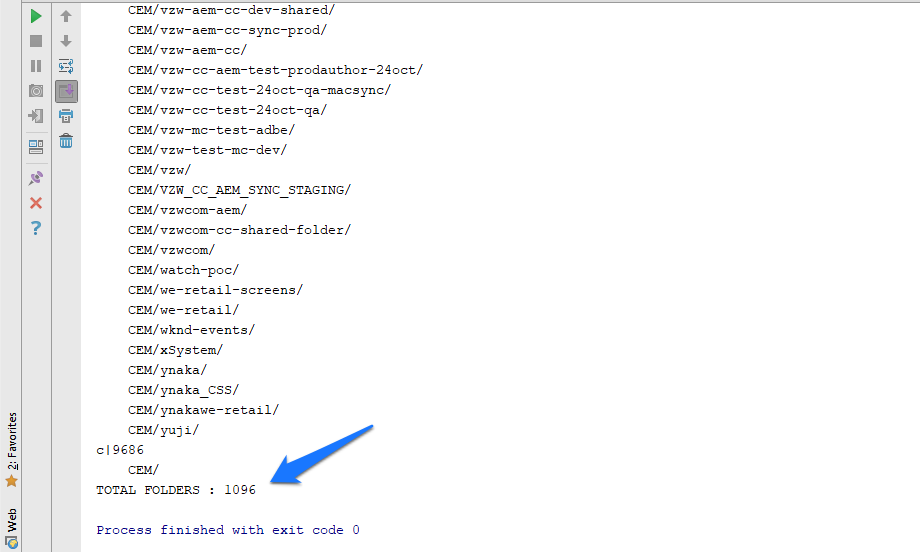

6) Sample output running the program from a local JVM...
